Flyback Transformer
For flyback converter topologies in SMPS and power conversion applications.
Our High Frequency Transformers
PMPE develops and produces customized power transformers for switched-mode power supplies across a wide range of topologies.
- Flyback converters
- Forward converters
- Push-pull converters
- Resonance converters
- Quasi-resonance converters
- Cuk converters
- DAB converters
High-frequency transformers are optimized for compact geometry, low parasitic effects and dependable insulation. Our engineers balance electrical performance, thermal behavior and manufacturability for each application.
Our High Frequency Transformers
High Voltage Transformer
Designed for high voltage output and special insulation requirements.
Isolation Transformer
Provides electrical isolation between primary and secondary circuits.
LLC Resonant Transformer
Engineered for LLC resonant converters with high efficiency and power density.
Planar Transformer
Compact, low-profile design using planar windings for high-frequency applications.
Pulse Transformer
For signal and gate-drive circuits with fast, reliable pulse transfer.
SMD Transformers
Surface-mount transformers for compact designs and automated PCB assembly.
Applications & Topologies

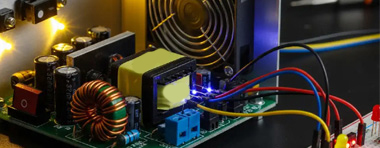

SMPS
Switch-mode power supplies.

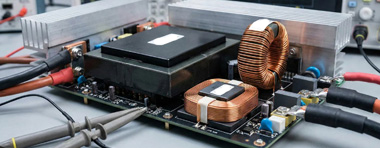

Industrial Power Electronics
Inverters, converters and motor drives.
Renewable Energy Systems
Solar inverters and energy storage.
Telecommunication
High-frequency power supplies.
Lighting
LED drivers and specialist lighting.

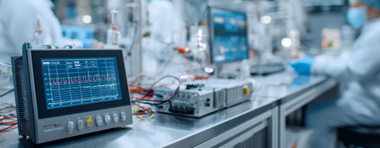

Medical & Industrial Equipment
Reliable isolated power conversion.
Design & Manufacturing Capabilities

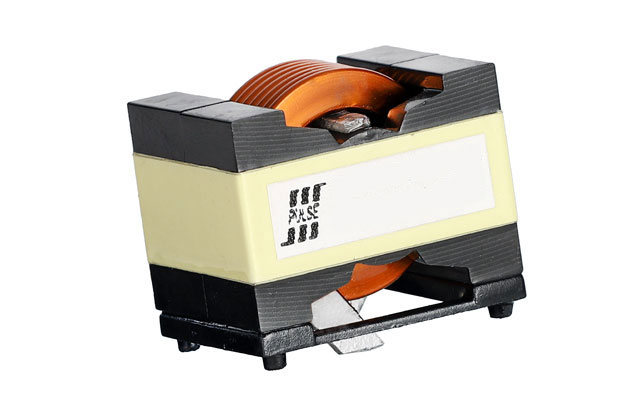

Material Used
- Manganese-Zinc Ferrite (MnZn)
- Nickel-Zinc Ferrite (NiZn)
- Nanocrystalline Alloys
- Amorphous Alloys (Iron-Based and Cobalt-Based)
- Permalloy / Nickel-Iron Alloys, Including Thin-Tape Cores
- Silicon Steel (Si-Fe)
- Ferrite and Custom Magnetic Materials

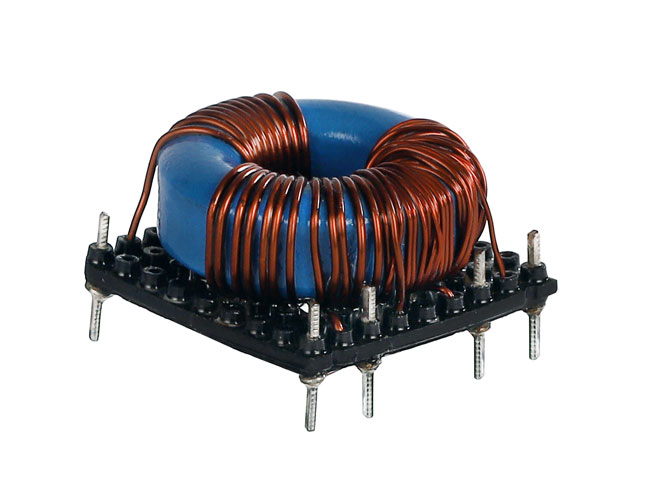

Designs
- Bobbin-Wound Transformers
- Toroidal Transformers
- Planar Transformers
- E-Core, ETD, EFD, ER and PQ Core Designs
- Tape-Wound Core Transformers
- Flyback Transformers
- Push-Pull Transformers
- Forward Converter Transformers
- Full-Bridge and Half-Bridge Transformers
- Signal and Pulse Transformers
- Custom-Wound Transformers

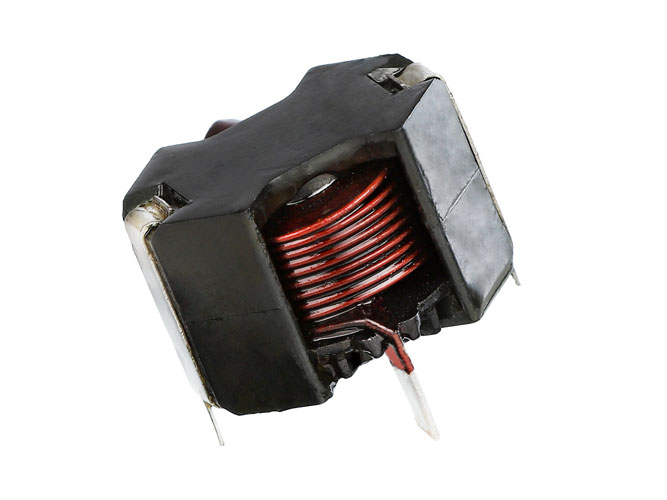

Conductors Used
- Enamelled Solid Copper Wire
- Fine-Strand Copper Wire
- Litz Wire (Served and Unserved)
- Fully Insulated Wire (FIW)
- Copper Foil
- Flat Copper Strip Wire
- Rectangular Copper Wire
- Triple-Insulated Wire (TIW)
- Custom Conductor Configurations
- Specially Insulated Conductors
LET'S BUILD TOGETHER
Talk to Our Engineers
Need a Custom High Frequency Transformer?
Tell us your electrical, mechanical and application requirements.
