Our Custom Wound Edge Winding Coils
Edge winding coils use flat or rectangular conductors wound on their edge to create compact, low-profile inductive components. PMPE designs these coils to meet application-specific electrical, thermal and mechanical requirements.
Edge Winding Coils
Design & Manufacturing Capabilities

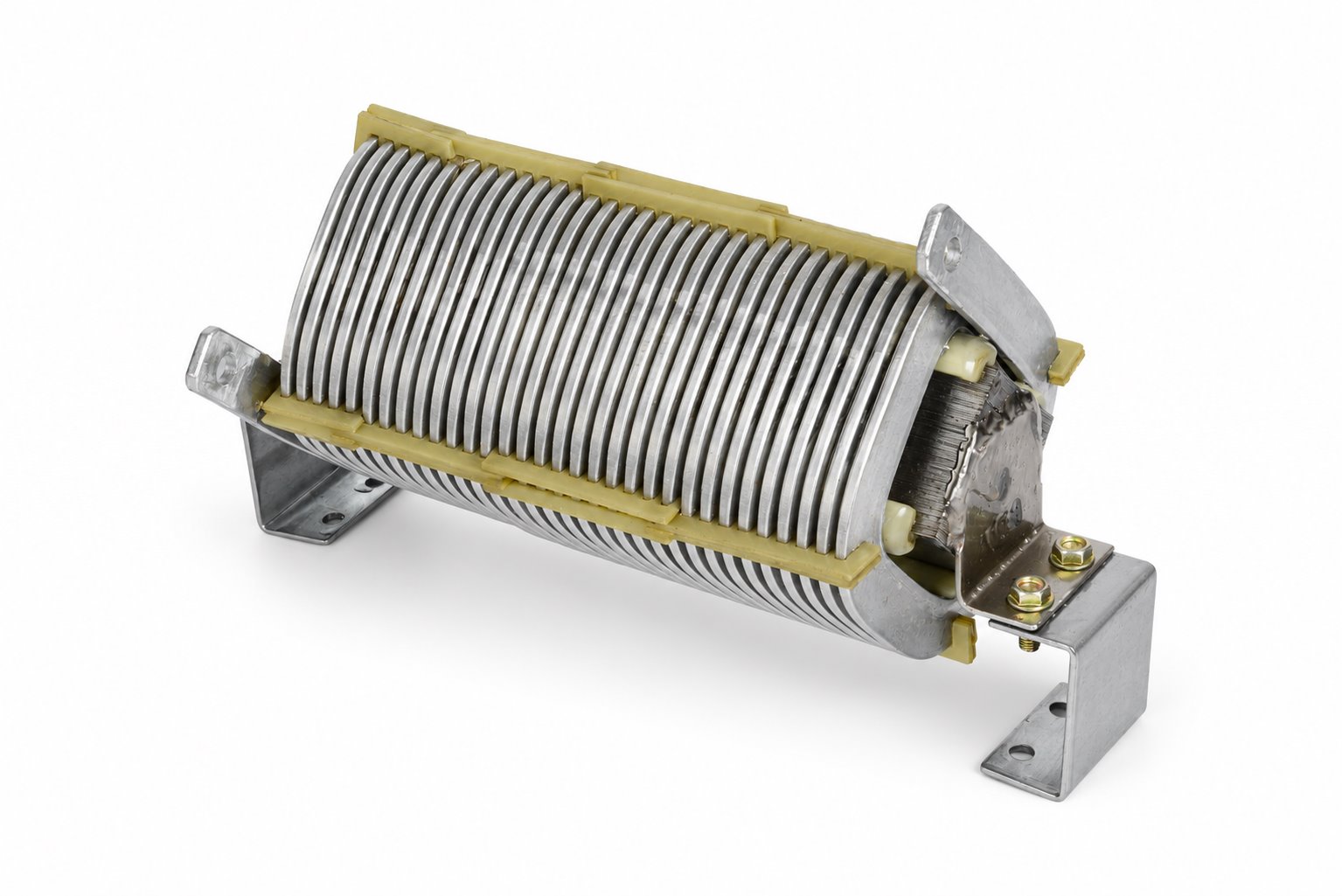

Material Used
- Soft ferrite and iron powder
- Carbonyl iron powder and MPP
- Silicon iron and nickel iron
- Amorphous and nanocrystalline cores

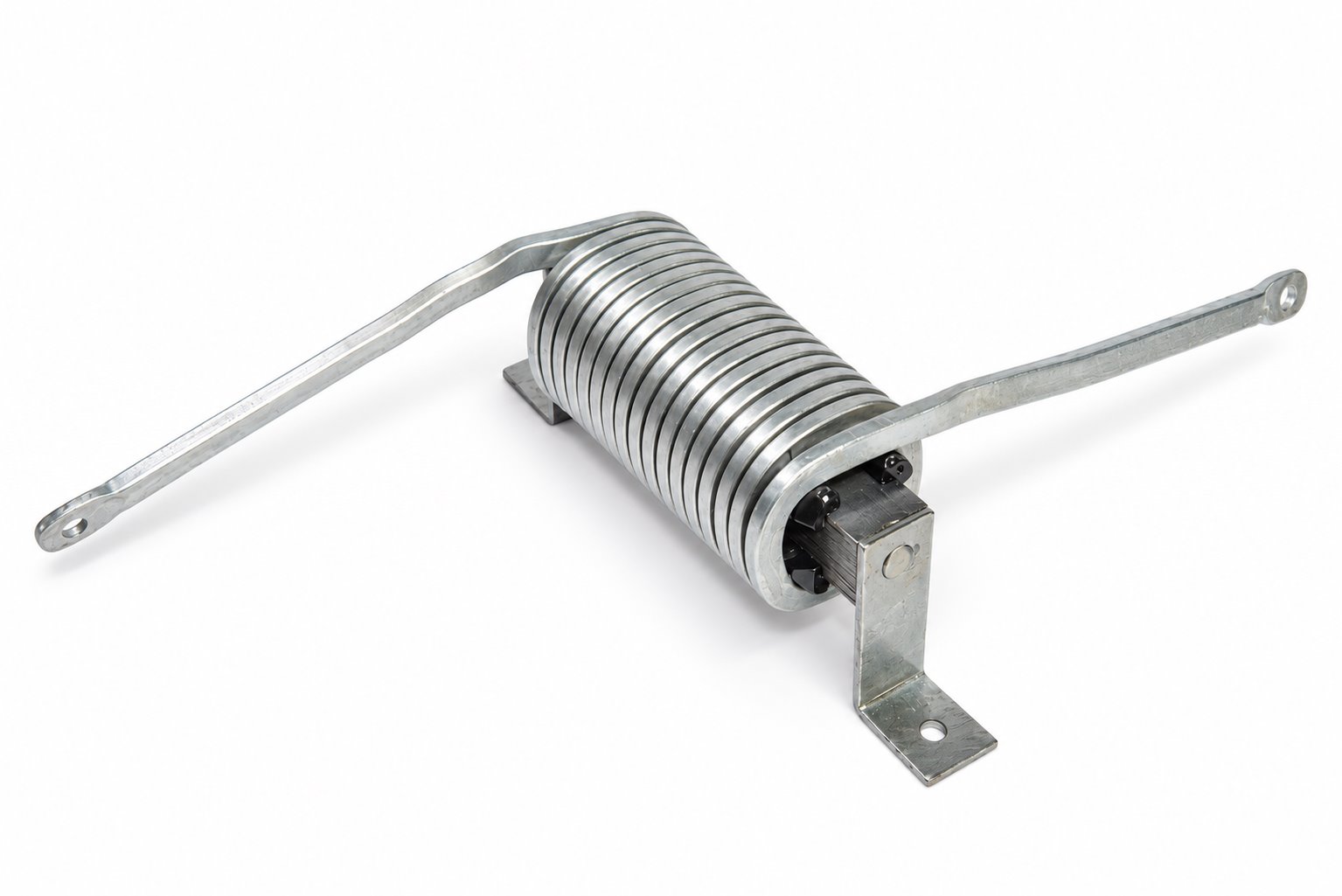

Designs
- Bobbin and toroidal windings
- Air coils and drum cores
- Ferrite rod and bead windings
- Planar and edge winding

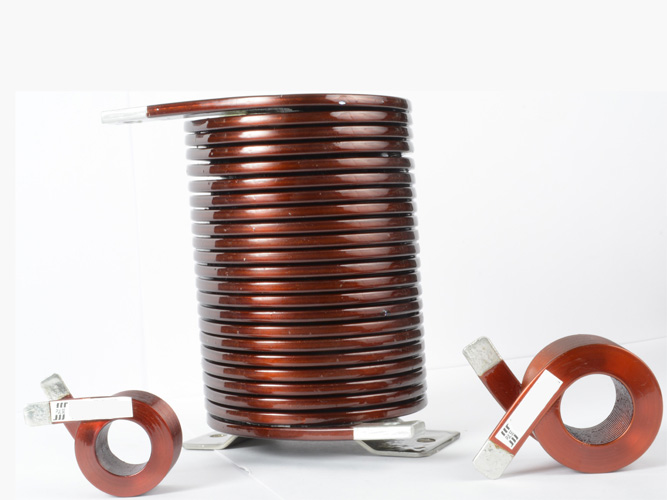

Conductor Used
- Solid copper wire and foil
- Litz wires, manufactured in-house
- Round and rectangular profiles
Where Our Edge Winding Coils Are Used
Inductors and Chokes
Transformers (As per design)
Motor Drives
Power Electronics Converters
Energy Storage Systems
Custom Industrial Applications
LET'S BUILD TOGETHER
Talk to Our Engineers
Need a Custom Edge Winding Coil?
Tell us your current, frequency, inductance and mechanical requirements.
